1-2199298-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-2199298-2
Datasheet:
Description:

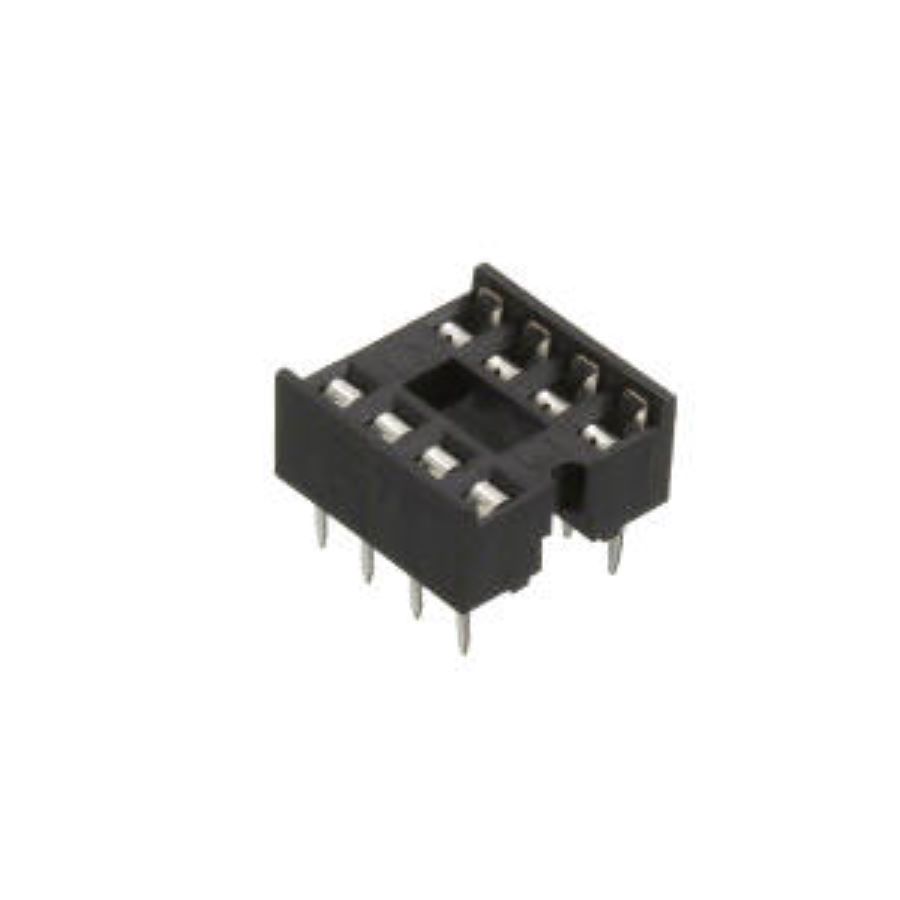

IC and Component Sockets Panel Number of Positions:8 Number of Rows:2 Pitch:2.54 mm Row Spacing:7.62 mm
| Parameter | Value |
|---|---|
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| RoHS | Compliant |
| Insulation Resistance | 10 GΩ |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.54 mm |
| Flammability Rating | UL94 V-0 |
| Color | Black |
| Number of Contacts | 8 |
| Mounting Style | Vertical |
| lead free status | Lead Free |
| operating temperature | -40.0 °C to 105 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Row Spacing | 7.62 mm |
| elv compliant | Compliant |
| Contact Finish - Mating | Tin |
Stock: 10021
Distributors
pcbx
pcbxUnit Price$0.20323
Ext.Price$0.20323
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.20323 | $0.20323 |
| 10 | $0.18083 | $1.80830 |
| 50 | $0.16090 | $8.04500 |
| 100 | $0.13948 | $13.94800 |
| 500 | $0.12091 | $60.45500 |
| 1000 | $0.10481 | $104.81000 |
| 3000 | $0.09085 | $272.55000 |
